Exhaust silencing

Production

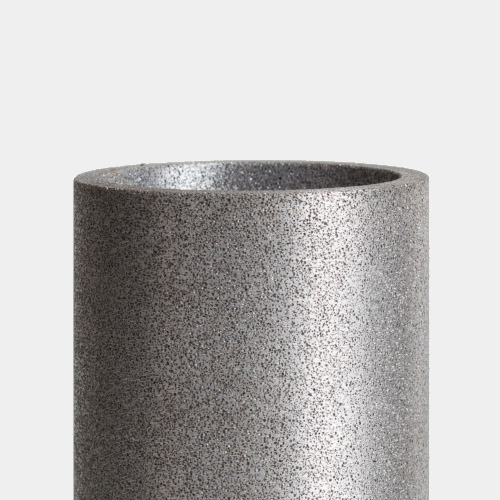

The modern standards of labor protection require quite strong norms of noise at work places. So, pneumatic compressors need to be equipped by good mufflers to reduce the noise. ALUPOR™  offers cheap effective solutions with low flow resistance:

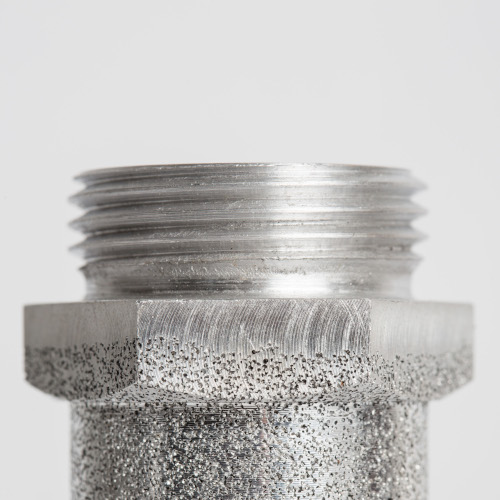

GR-SW series

Thread silencers

Model

Thread type

Thread size

D

d

L

h

SW

GR-SW G1-8

G*

1/8”

10

6

21.5

4.5



13

GR-SW G1-4

1/4”

13

9

28

6

16

GR-SW G3-8

3/8”

17

12

36

7

19

GR-SW G1-2

1/2”

20

16

43.5

9

24

GR-SW G3-4

3/4”

27

21

56

10

30

GR-SW G1 1” 33 26 67 12 36

* - We can do any type of thread! M, NPT and R threads also available.

Model

Air flow**, nm3/min

SPL not more than, dB(A)

Exploitation temperature

Analogues

GR-SW G1-8

1900

76

-60…250°С

Camozzi 2921

Camozzi 2931

FESTO AMTE

AVENTICS Sl1

SMC AN

GR-SW G1-4

3115

78

GR-SW G3-8

4420

80

GR-SW G1-2

6650

81

GR-SW G3-4

12700

83

GR-SW G1

17900

85

** - Measured at pressure drop between inlet and normal atmosphere  0.63 MPa



GR-SW-HP series

High pressure thread silencers

Model

Thread type

Thread size

D

d

L

h

SW

GR-SW-HP G1-2

G*

1/2”

60

40

160

15

24

GR-SW-HP G3-4

3/4”

60

40

160

15

30

GR-SW-HP G1

1”

70

50

220

20

36

GR-SW-HP G1 1-2

1 1/2”

70

50

220

20

50

GR-SW-HP G2

2”

70

50

220

20

60

* - We can do any type of thread! M, NPT and R threads also available.

Model

Air flow**, nm3/min

SPL not more than, dB(A)

Exploitation temperature

Analogues

GR-SW-HP G1-2

30.6

86

     -60…250°С

Festo U-…-HD-SA

SMC VCHN

GR-SW-HP G3-4

30.6

86

GR-SW-HP G1

58.0

92

GR-SW-HP G1 1-2

58.0

92

GR-SW-HP G2

58.0

92

** - Measured at pressure drop between inlet and normal atmosphere  5.0 MPa

M series

Special silencers for pneumatic motors / engines / screwdrivers

ALUPOR™  closely cooperates with Russian company – ZAO "Instrum rend"  that uses products of Ingersoll Rend in their designs of pneumatic equipment.  They successfully implemented silencers with ALUPOR™ noise absorbing element for pneumatic motors instead ones with fiber noise absorbing elements. As the  results there  were dramatically increased durability of silencers at the same noise reduction characteristics. Also, contrary to conventional elements, ALUPOR™ ones may be regenerated. If you want to bye  such silencers please refer to our partner ZAO "Instrum rend"

Model

Air flow of motor, nm3/min

SPL not more than, dB(A)

Thread

Exploitation temperature

M003

 MD003 MP003

1.2

82

NPT 1/8"      -60…250°С

M015

 MD015 MP015

1.9

88

NPT 1/4"

M050

 MD050 MP050

4.3

92

NPT 1/2"

All the above mentioned parameters are measured at pressure drop between inlet and normal atmosphere  0.63 MPa
